Secure resilient time synchronization fast
and cost-efficiently without relying on GNSS,
on top of your IP network infrastructure.
OVERVIEW
Our synchronization solution, Zyntai, is engineered to address the complex challenges of time synchronization across diverse networks. By creating an independent overlay sync network, Zyntai operates free from the constraints of underlying IP and transport infrastructures, ensuring precise synchronization wherever needed. This innovative method eliminates the reliance on traditional time sync hardware support within transport routers and switches, and maintains performance also over leased capacity. Implementing this network-based synchronization enhances network reliability and gives you greater control and visibility over your synchronization, while accelerating the deployment of time sync everywhere since there is no need for extensive hardware upgrades. Zyntai boosts your network’s operational efficiency , while making the network more resilient when not relying on external time sources like GNSS.
Including for leased capacity
Securing control of network
Multiple sources and routing
CHALLENGES WITH TRADITIONAL TIME SYNCHRONIZATION ALTERNATIVES
OUR SOLUTION

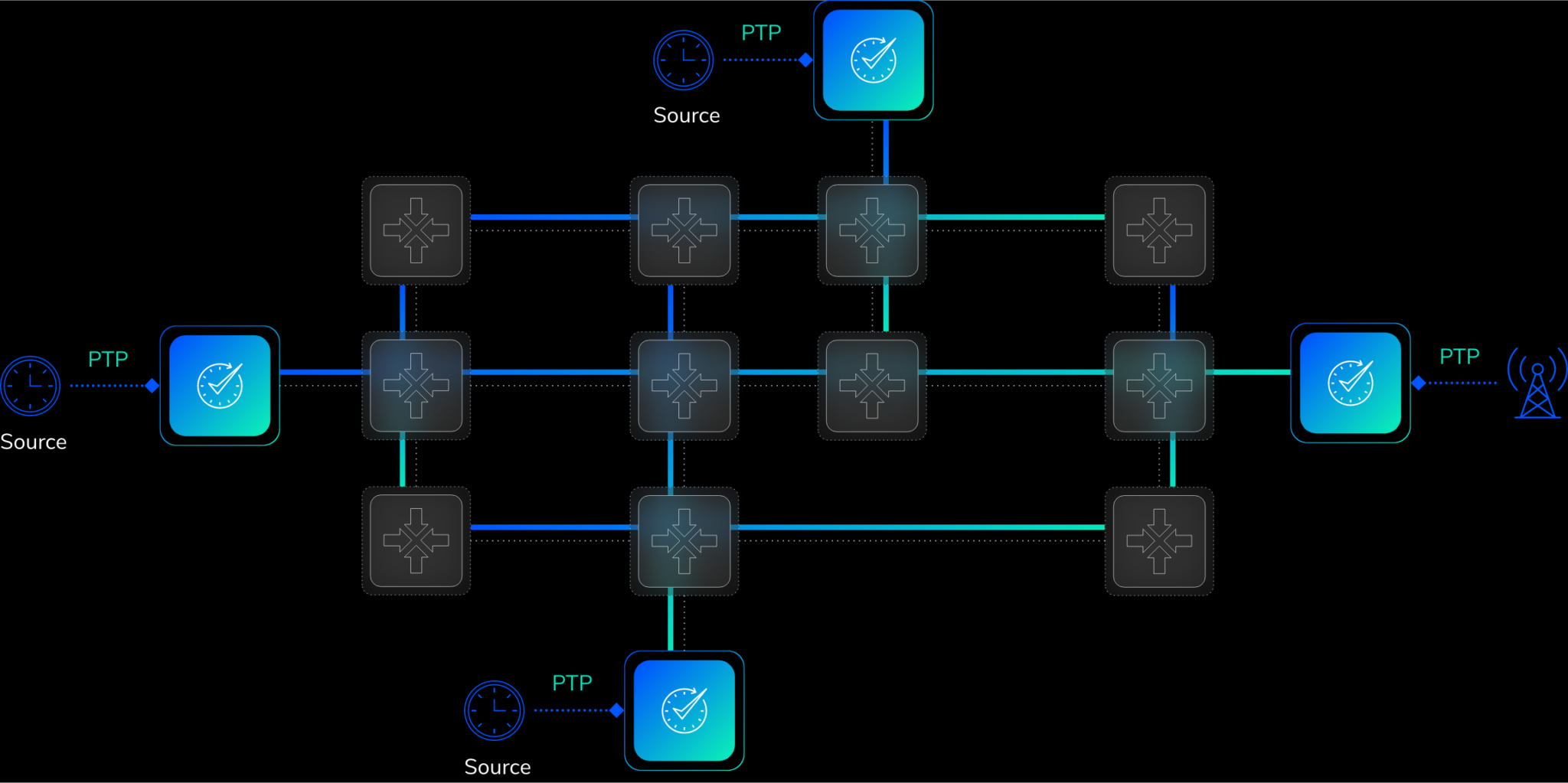

Net Insight’s Zyntai TimeNode receives synchronization from a source in the network, typically a PTP signal (Precision Time Protocol, G.8275.1 Full Timing Support). Through advanced time algorithms, the TimeNode processes and converts the sync signal, enabling its distribution across extensive network areas and multiple hops. Leveraging multiple sync sources and using multi-link routing, our solution maintains stringent time synchronization requirements and auto-calibrates for asymmetries, even in the event of path or source loss. As the signal is distributed through the network, another TimeNode located farther out to the edge receives the Zyntai signal and converts it back to e.g. PTP for distribution to various endpoints, such as radio sites.

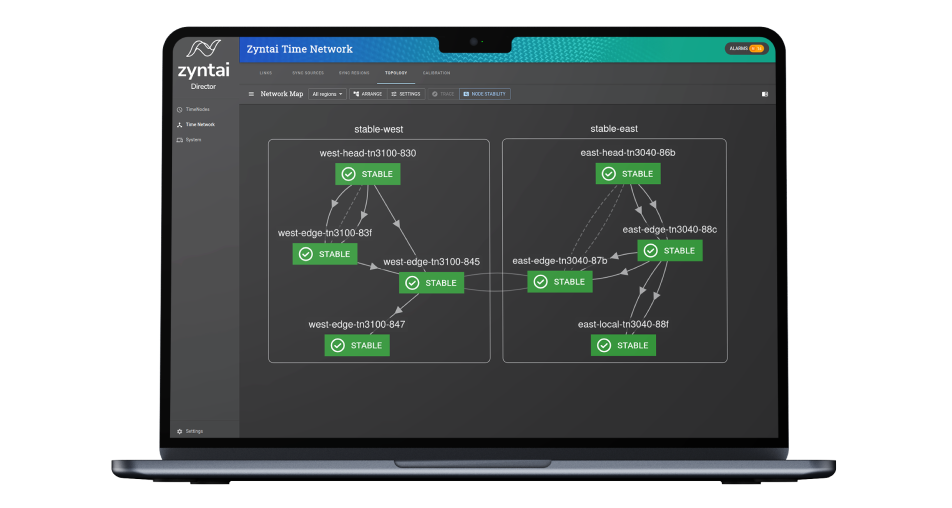

The Zyntai Director orchestrates and manages the network synchronization in real-time. Various metrics are continuously collected and analyzed to get a 360 view of the synchronization performance as well as the behaviour of the transport network.
Advanced time
algorithms
Sends high quanties of time stamp packages and filters out relevant packages for minimum confidence intervall.
Asymmetry
Correction
Dynamically detects and elimenates synchronization assymetries in real-time.
Synchronization
Mesh overlay
Uses collaborative clocks and multi-link routing for redundency.
Observability in real-time
Real-time insights into sync and transport network KPI:s.
PRODUCTS

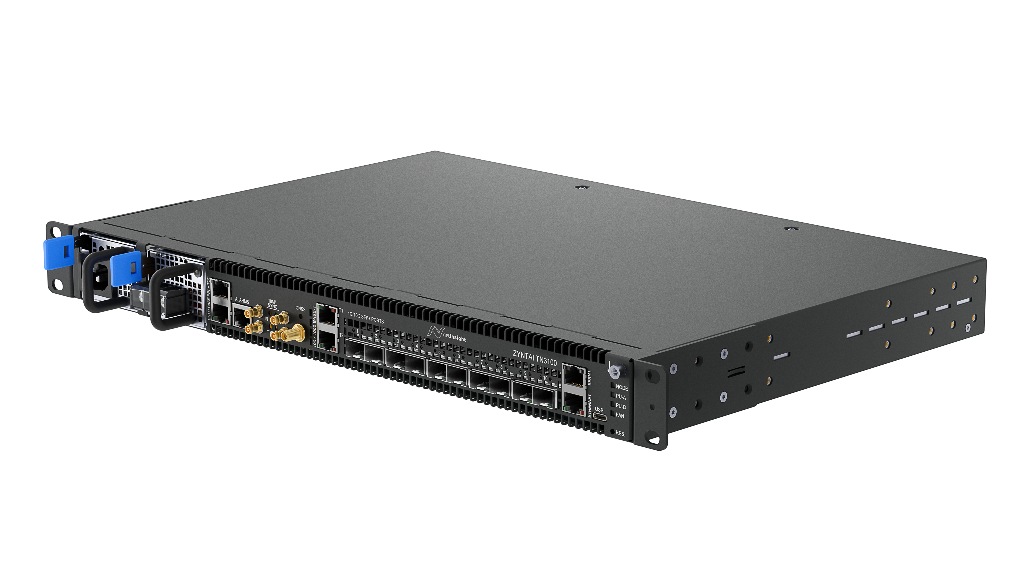

Zyntai TimeNodes streamline synchronization in large-scale IP and optical networks with advanced routing and collaborative clocks for unmatched accuracy.
The Zyntai Director leverages telemetry analytics to monitor synchronization networks with nanosecond precision, capturing hundreds of metrics like time errors and delay variations.
BENEFITS
Ensure network
resilience
Achieve GNSS independence and secure reliability with mesh technology.
Deploy sync fast and cost-optimized
Implement on top of existing IP network infrastructure regardless of network vendor.
Provide 5G
monetization potential
Resilient synchronization gives the opportunity to offer Time-as-a-Service to enterprise customers.
SOLUTION BRIEF
This solution brief describes how the synchronization function is disaggregated from the hardware, thus creating a sync overlay across the existing IP network.
