Assured Timing Across Real-World Networks
Explore Zyntai timing nodes and centralized orchestration for resilient synchronization across existing networks — from core to distributed edge sites.

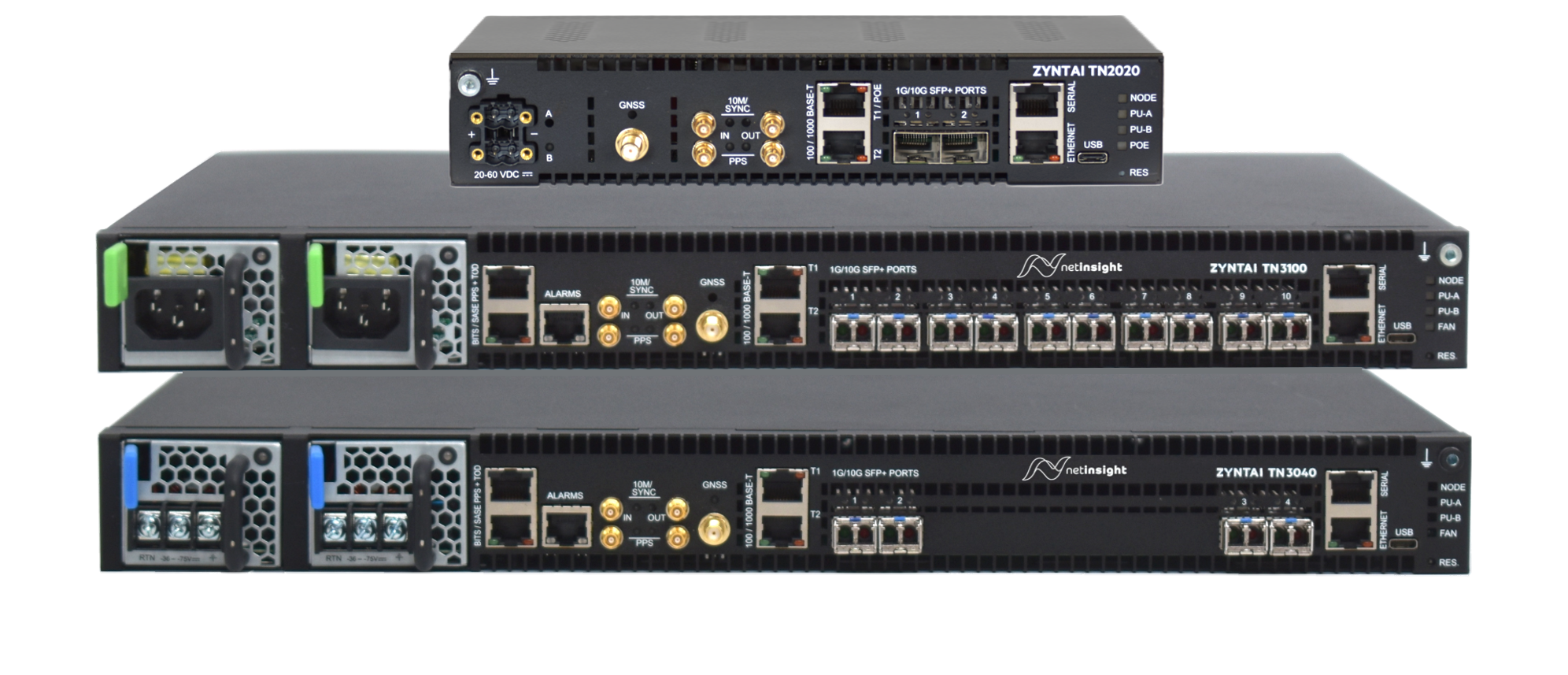

ZYNTAI TIMENODE FAMILY
Built to Scale from Core to Edge
The Zyntai TimeNode family delivers precise, resilient synchronization across existing IP and optical networks, including leased and non-PTP-aware transport.
Combining network-delivered timing with local GNSS capabilities, Zyntai helps operators reduce dependence on a single timing source and extend assured synchronization to more locations.
• Resilient timing over existing infrastructure
• Flexible models for core and access deployment
• Centralized orchestration with Zyntai Director
FIND YOUR TIMENODE
Explore our TimeNodes
Choose the model that fits your deployment, capacity and local GNSS requirements.
NEW

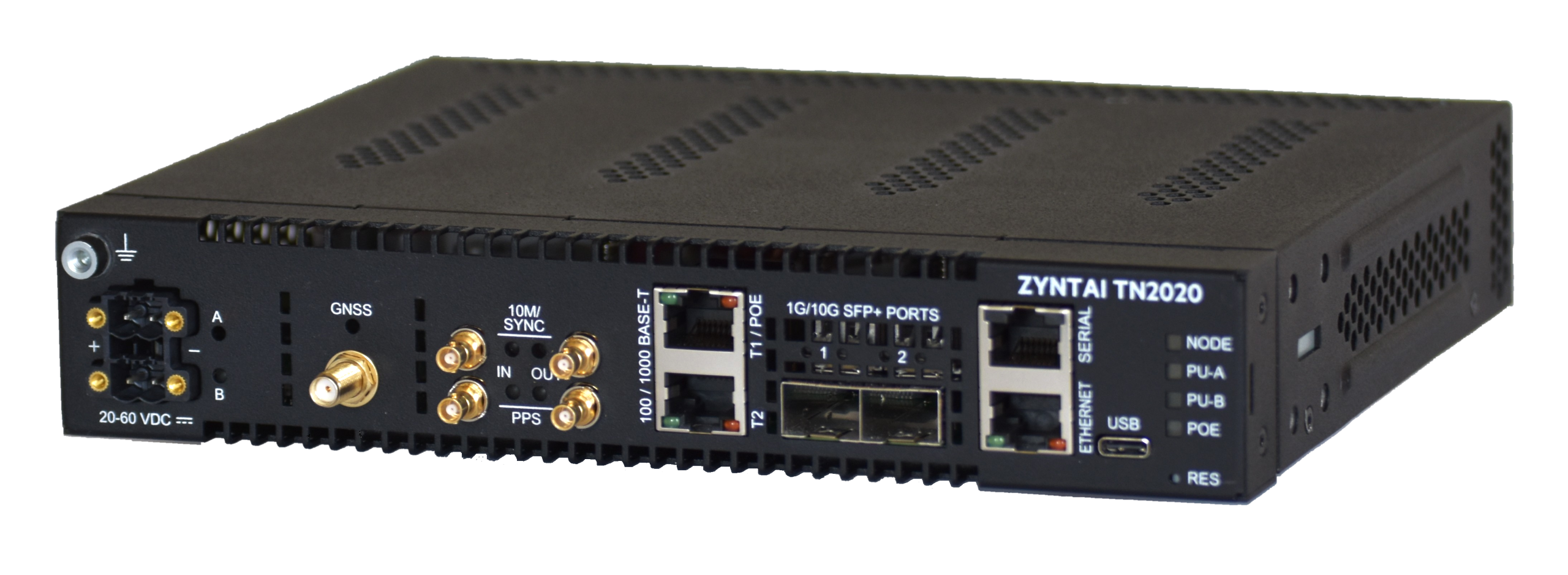

Zyntai TimeNode Access
TN2020
Resilient timing for distributed edge sites
A compact PTP Grandmaster that brings secure, network-delivered timing to access sites without requiring a PTP-aware access network.
• Cost-efficient deployment across large numbers of sites
• Multi-constellation GNSS (GPS, Galileo, GLONASS, BeiDou and QZSS) with T-RAIM
• Passive cooling, dual DC input and PoE Type 3
Covers TN2020 and TN2020M
NEW

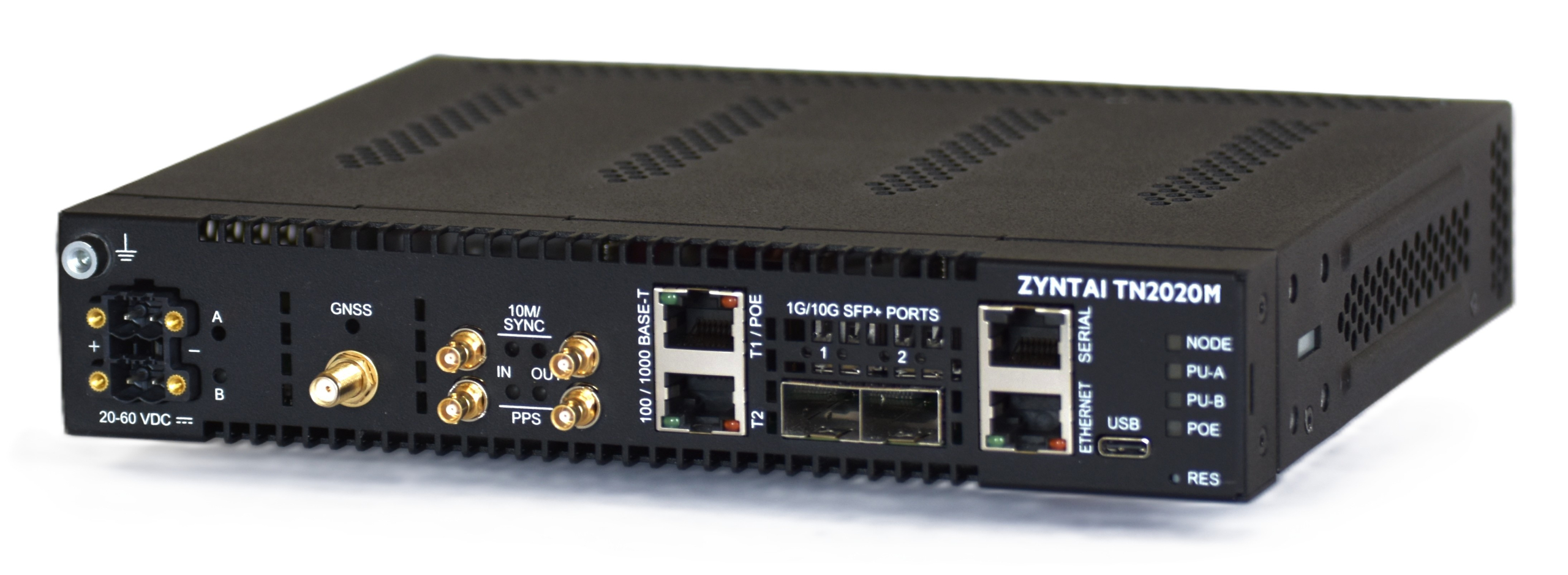

Zyntai TimeNode Access Multiband
TN2020M
Enhanced GNSS robustness at the edge
The same resilient network-based timing architecture, with additional local GNSS capabilities for sites with more demanding assurance requirements.
• Robust L1/L5 multiband GNSS with OSNMA authentication
• Jamming detection and advanced spoofing detection and mitigation
• Passive cooling, dual DC input and PoE Type 3
Covers TN2020 and TN2020M
Zyntai TimeNode Core
TN3100
Resilient timing across existing networks
Deliver precise, network-based synchronization across existing IP and optical infrastructure, including leased and heterogeneous transport environments.
• Transport-independent timing distribution
• Advanced timing algorithms and real-time asymmetry correction
• Centralized orchestration and monitoring with Zyntai Director
Zyntai TimeNode Enhanced Core
TN3100E
Enhanced GNSS resilience for demanding networks
Combine Zyntai’s network-based timing capabilities with multiband GNSS and advanced protection against jamming and spoofing in challenging GNSS environments.
• Multiband GNSS with OSNMA signal authentication, including IRNSS/NavIC support
• Enhanced anti-jamming and time-based anti-spoofing capabilities
• High capacity PTP GM with G.8272.1 (ePRTC) performance

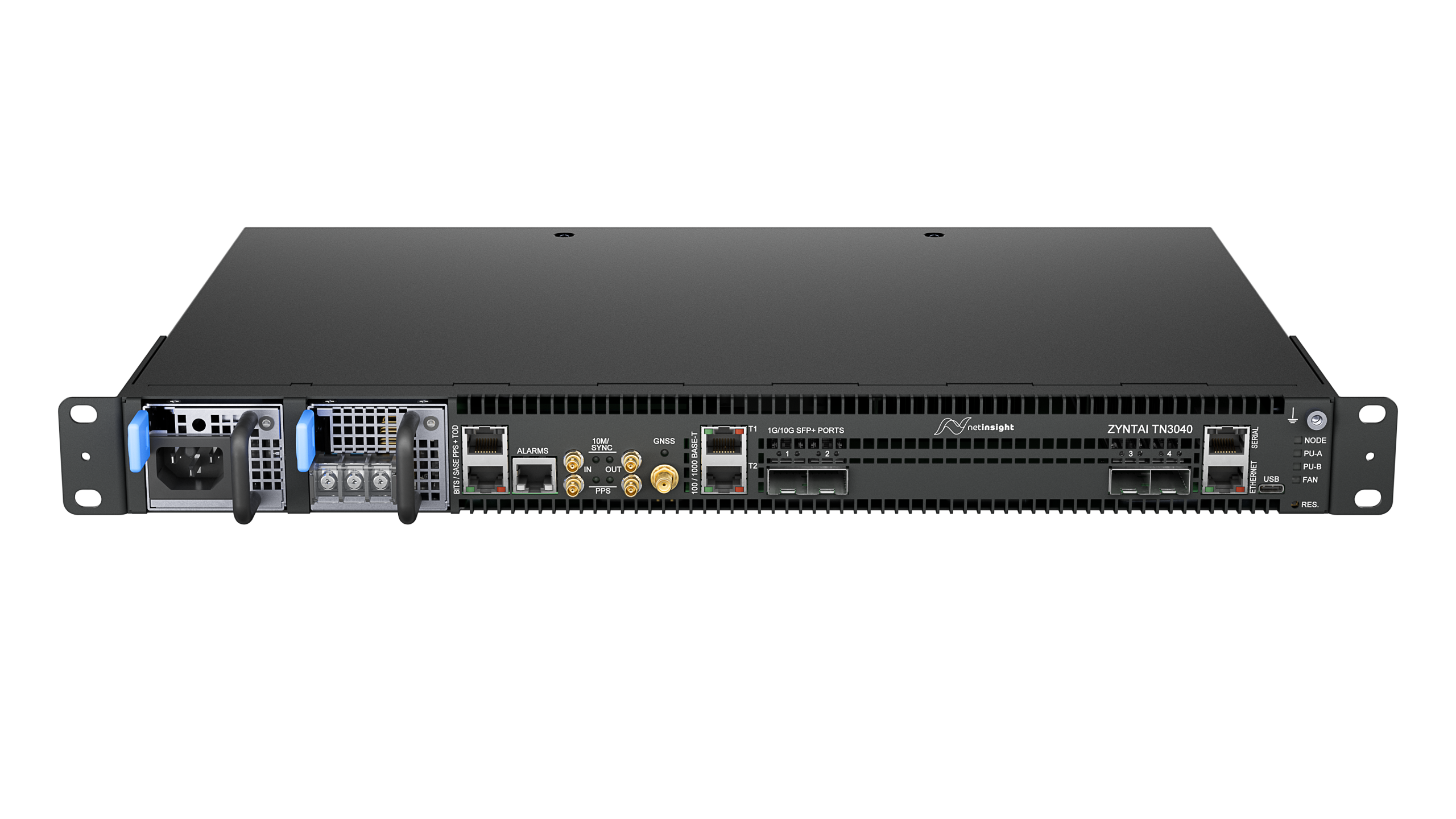

Zyntai TimeNode Rugged Access
TN3040
Resilient timing across IP/MPLS and Optical Networks
Deliver precise, resilient synchronization across existing IP and optical networks, including heterogeneous and leased transport environments.
• Hardened -40 to 65°C (-40 to 149°F) Not temp-controlled environments
• Advanced timing algorithms
• Centralized orchestration with Zyntai Director
CENTRALIZED ORCHESTRATION
Zyntai Director
One View of Your Timing Network
Manage your Zyntai TimeNode deployment through one centralized orchestration system. Zyntai Director provides visibility into timing sources, synchronization status and network timing performance, helping operators maintain assured timing across distributed sites.
• Centralized monitoring and SLA visibility
• End-to-end orchestration and control
• APIs for integration and automation
Find the Right Timing Solution for Your Network
Talk to our experts about your deployment, resilience requirements and the right Zyntai TimeNode models for your sites.
